Inflatable Arch

INFLATABLE ARCHES - HIGHLIGHT OF EVERY SPORT EVENT
Aufblasbarer Torbogen / Werbebogen - Inflatable - Titelbild

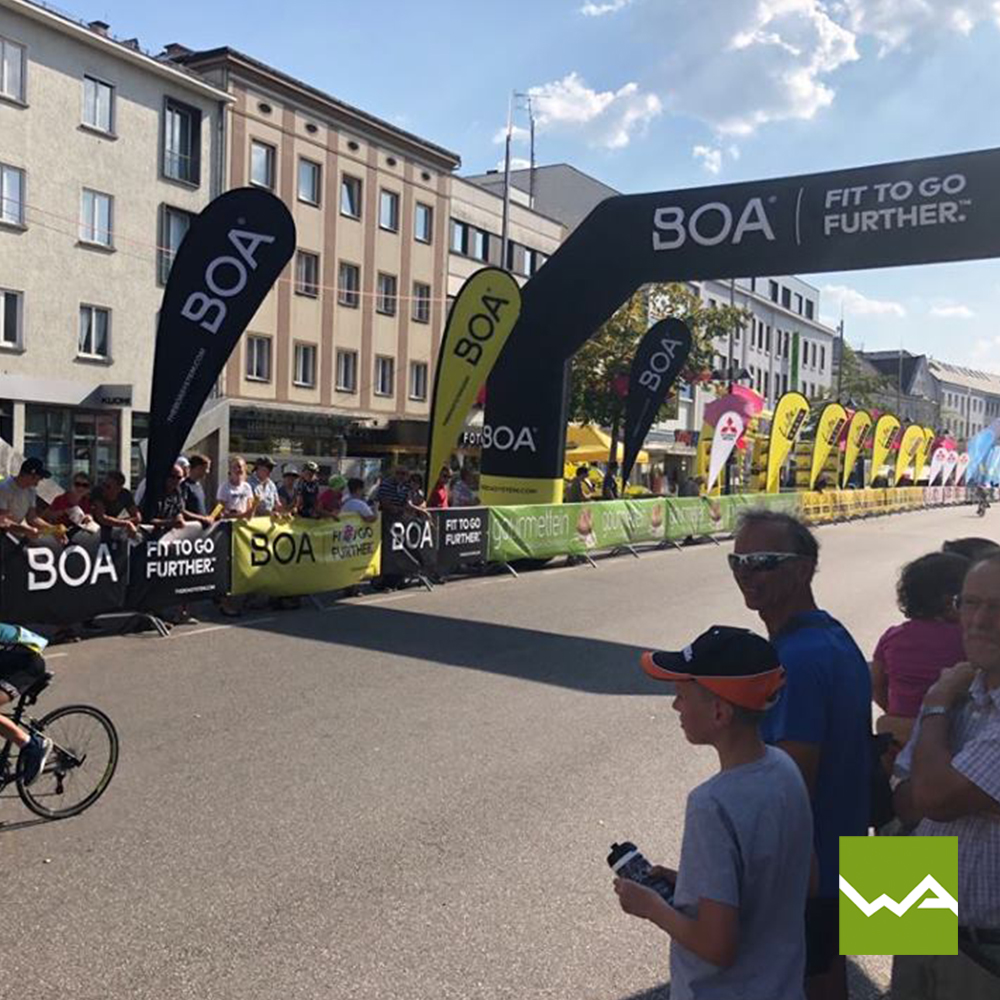

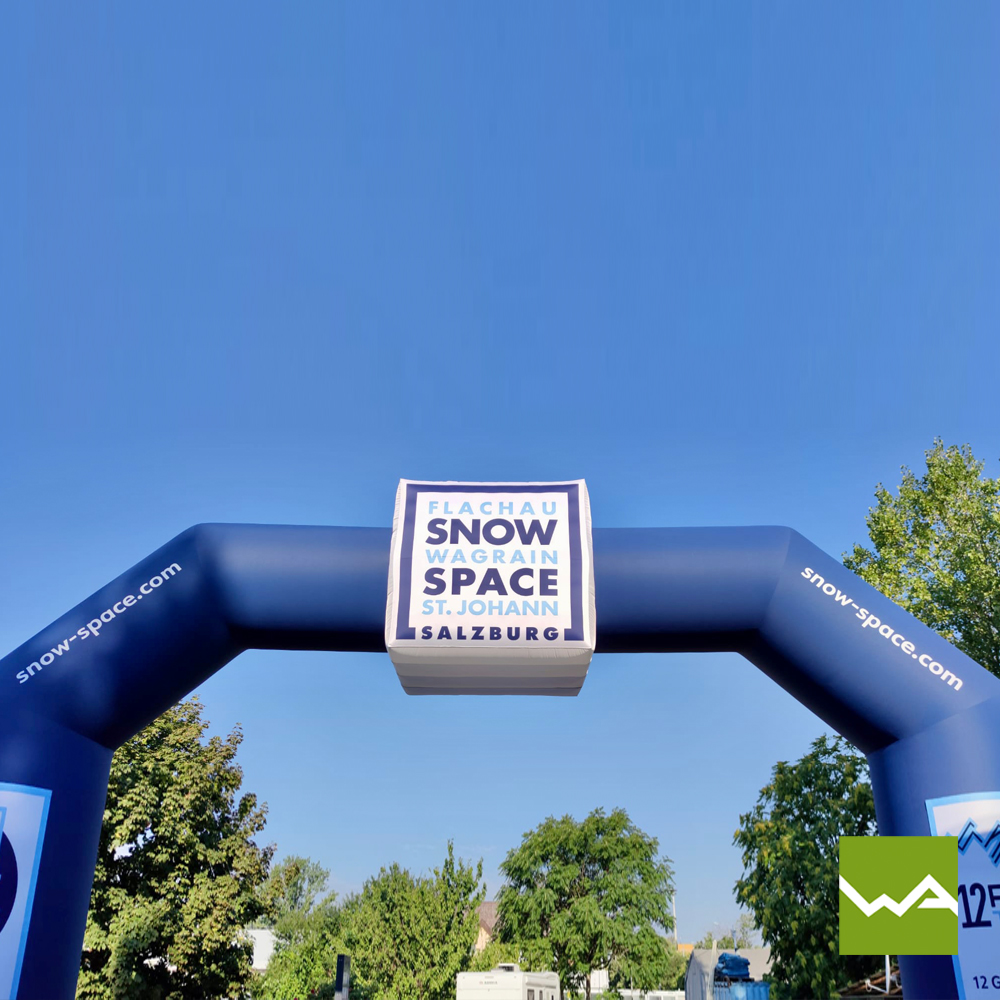

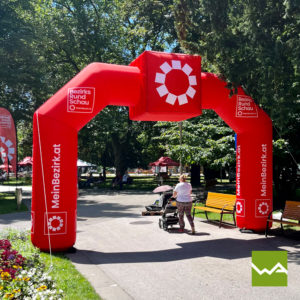

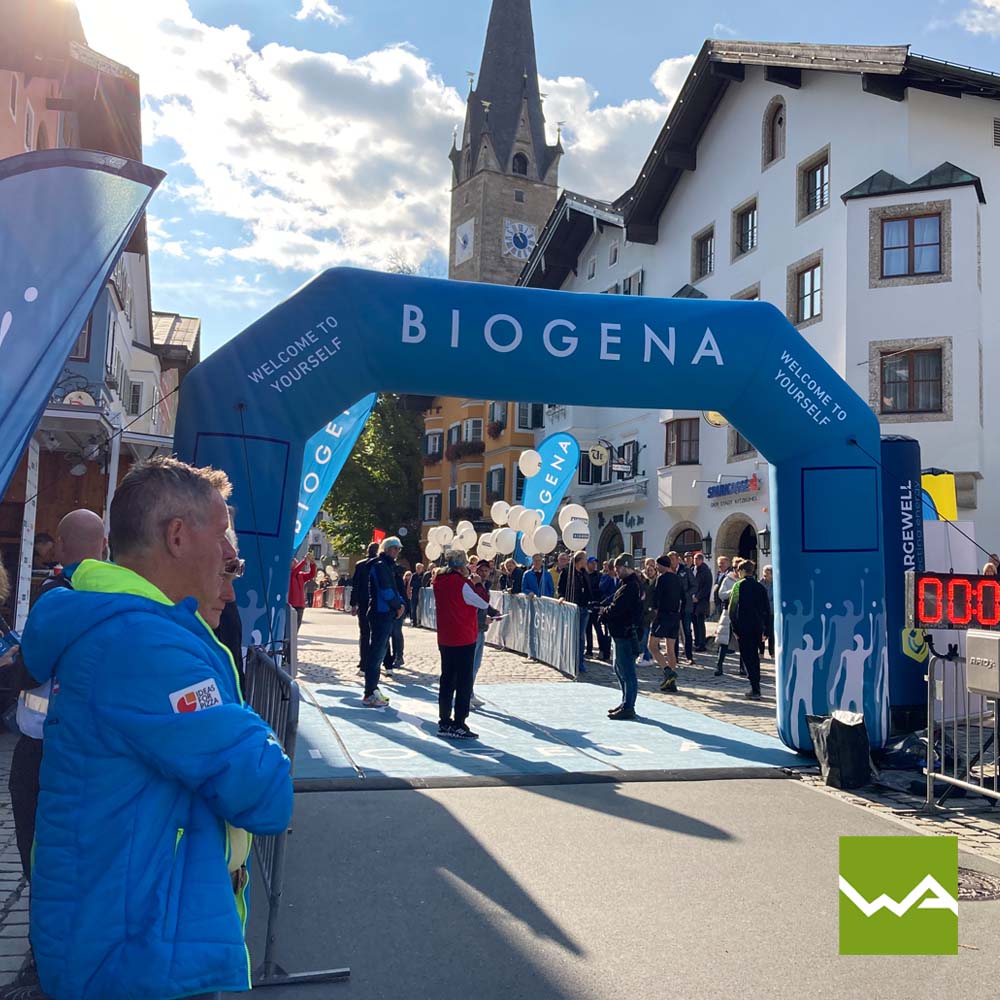

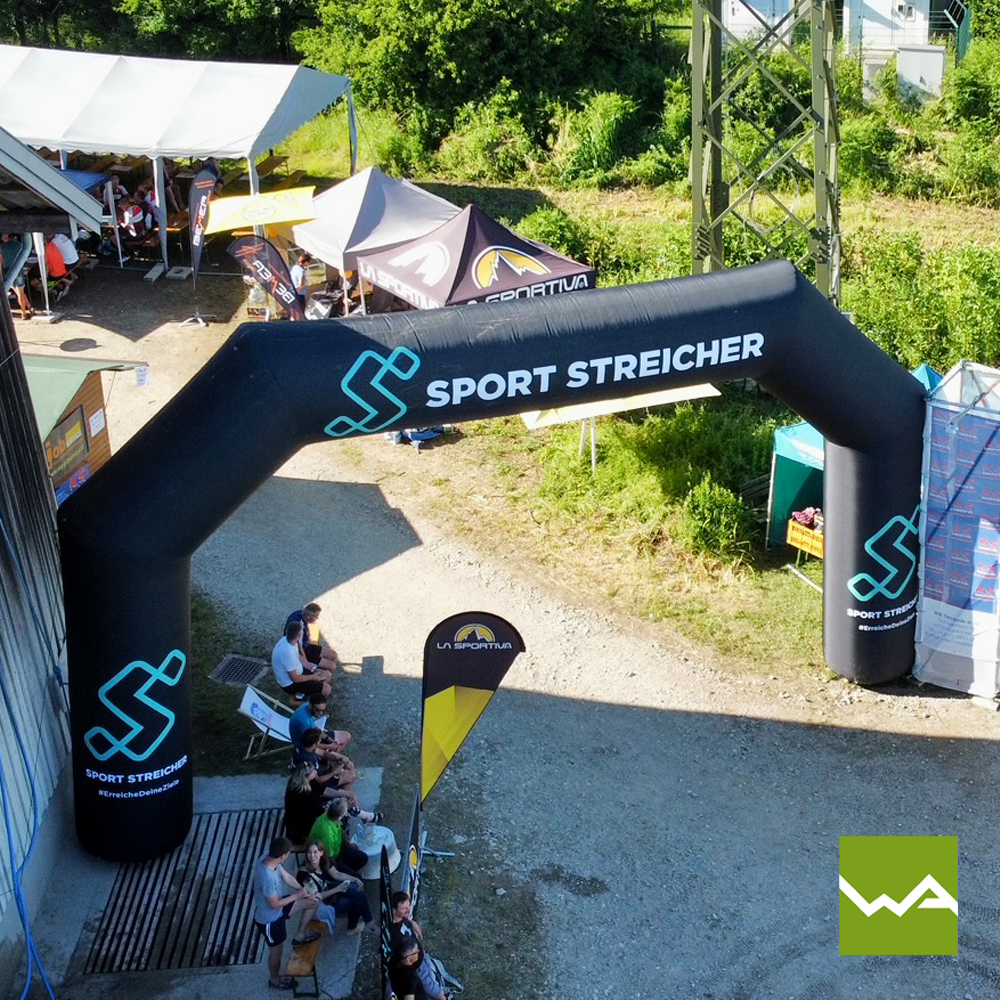

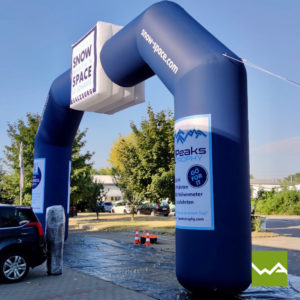

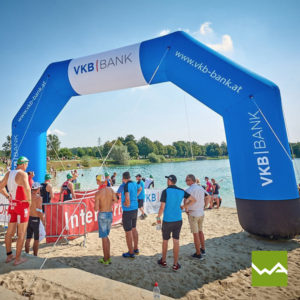

An inflatable arch is a good way to optimally stage sports events, road shows or event entrances. Due to the enormous span, the inflatable arch can be used on streets – perfect to bring out any advertising message. An inflatable arch is made individually according to the customer’s ideas. For distinctive advertising appearances, there is the possibility of realizing individual forms. Due to the different materials, special customer requests can be realized, which makes an inflatable arch a unique eye-catcher at every event. Shapes, sizes or prints – dieWerbearchitekten make it possible!



  • Eye-catcher of every event
  • Quick and easy to setup
  • Small pack size and weight
  • Individual sizes and shapes possible
  • Can be used for many years
  • Unique price / performance ratio
  • Inflatable advertising product
exkl. VAT.
exkl. freight costs
Inquire now

Specification: Inflatable arch

Material

Polyamide fabric 220g / m²
water and dirt repellent coating
PVC reinforcement on the bottom

Fan

230 V / internal or external

Set up

1 person / < 5 minutes

Print

Not included in the price

Optional version

Individual roof structures
LED lighting

Additional equipment

weight bags

scope of delivery

Inflatable arch
carry bag
fan
guy ropes

Dimensions: Inflatable advertising arch

Inflatable Arch XS
Span: 4,6 m
Height: 3,8 m
Leg-Diameter: 0,8 m

Inflatable Arch S
Span: 6 m
Height: 4 m
Leg-Diameter: 1 m

Inflatable Arch M
Span: 8 m
Height: 5 m
Leg-Diameter: 1,2 m

Inflatable Arch L
Span: 10 m
Height: 6 m
Leg-Diameter: 1,3 m

Inflatable Arch XL
Span: 12 m
Height: 7 m
Leg-Diameter: 2 m

Inflatable Arch CUSTOM
Dimensions and shape: according to customer requirements

FURTHER INFORMATION: INFLATABLE ARCH

Inflatable advertising arch with external permanent blower:

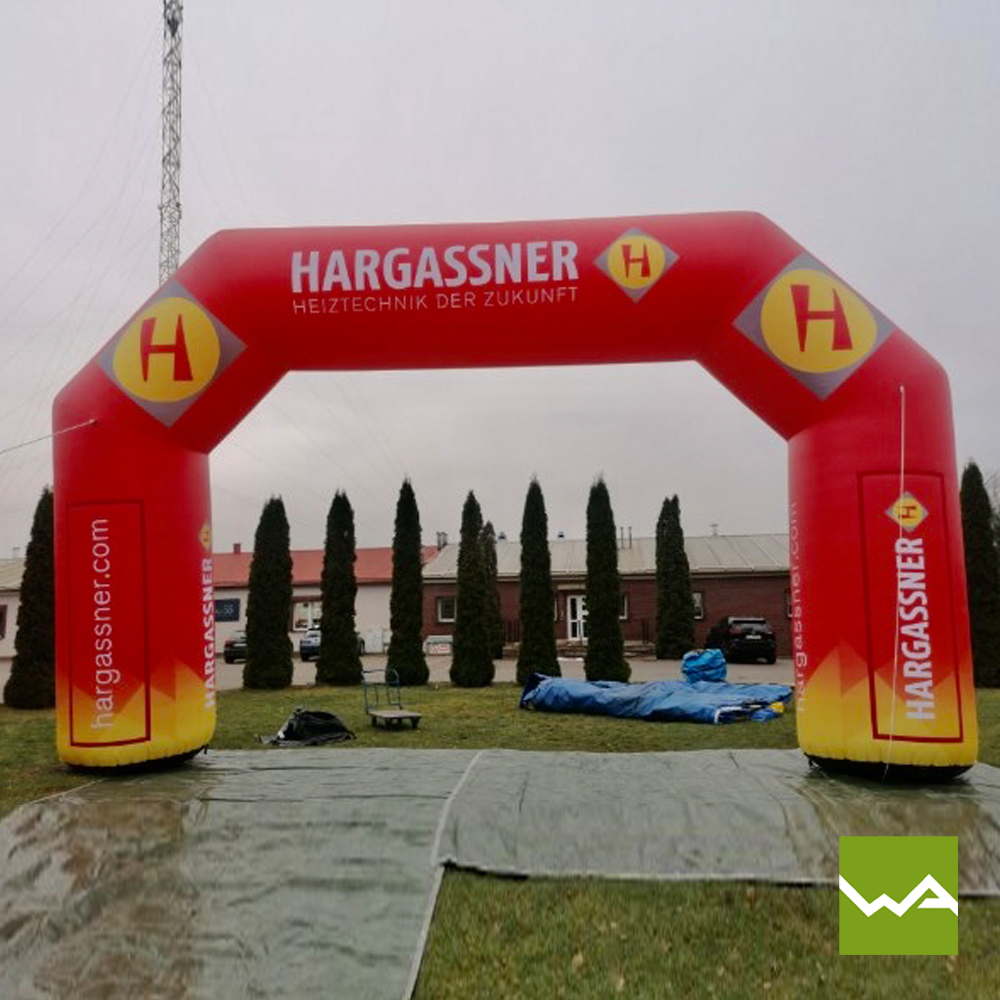

Before setting up, ensure that the stand is level and clean. If necessary, use a tarpaulin to avoid coarse dirt on the arch. Take the arch out of the stuff sack and spread it out completely on the space provided. You should make sure that the leg on which the hose for the blower is located is closest to the power source. Connect the air hose to the blower and then close all zips on the inflatable arch. After the cable has been connected to the socket, the advertising sheet is inflated by the permanent blower. If the target sheet is filled with air, you can set up the sheet. For this, at least 2-3 people should tackle it. By pulling and pushing hard, the inflatable arch is now brought into the upright position. Next, weigh down the legs with the weight bags provided and tension the guy ropes with the pegs to the floor. If the target sheet is sufficiently secured, nothing stands in the way of your event.

Inflatable advertising arch with integrated permanent blower:

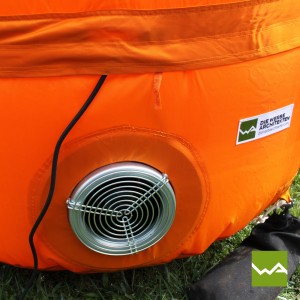

Before setting up, ensure that the stand is level and clean. If necessary, use a tarpaulin to avoid coarse dirt on the advertising arch. Take the archway out of the stuff sack and spread it out completely on the space provided. Make sure that the leg in which the blower is integrated is closest to the power source. Pull the cable out of the air outlet opening and then close all zips of the inflatable arch. After the cable has been connected to the socket, the archway is inflated by the permanent blower. If the target sheet is filled with air, you can set up the sheet. For this, at least 2-3 people should tackle it. By pulling and pushing hard, the inflatable arch is now brought into the upright position. Next, weigh down the legs with the weight bags provided and tension the guy ropes with the pegs to the floor. If the target sheet is sufficiently secured, nothing stands in the way of your event.

Is the inflatable advertising arch only available in certain standard sizes?

No. Like most of our products, the inflatable advertising arch is made individually according to customer requirements. Individual size concepts can therefore be taken into account.



Is the advertising arch also available with square instead of round legs?

Yes. Like the size, the shape can also be designed individually according to customer requirements. Rope tensions are processed inside for an angular shape.



Does the inflatable arch have to constantly supply air?

Yes, the inflatable arch must be connected to the 220V permanent blower for the entire duration of use.



Do you need a high-voltage connection for the fan?

No, a 220V connection is sufficient for the permanent blower.



Is the permanent blower included in the price?

Yes, the permanent blower, like a stuff sack and pegs, is already included in the price.



How is the inflatable advertising arch fixed?

Sandbags are used for attachment, which are fixed to the legs. In addition, the bow is tensioned to the ground on all sides with guy ropes and pegs.



How many people are needed to set up the advertising arch?

2-3 people are at least necessary to get the bow into its upright position by pulling and pushing hard.



Can you use the inflatable arch in the rain?

Yes, the bow can also be used in the rain. However, it is important that it is only packed in the transport bag when dry.



Can you clean the inflatable advertising arch from dirt?

It depends on what kind of contamination it is. Most dirt can be removed with a high-pressure cleaner and a soft brush.



How long is the delivery time for an inflatable advertising arch?

The delivery time depends on the current order situation. However, a delivery time of 3-4 weeks should not be exceeded.
